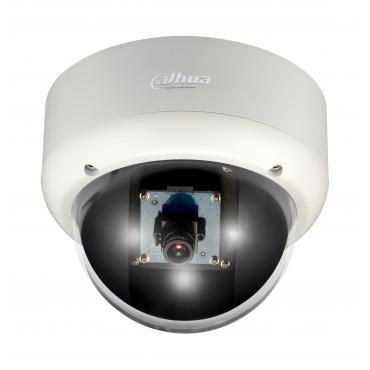

Camera Dahua IPC-DB665

Nhà sản xuất : Dahua

Xuất xứ : Trung Quốc

Bảo hành : 12 tháng

Tình trạng : Đang có hàng

Giá: Liên hệ để có giá tốt

0903 790 902

Thông tin sản phẩm
Thông số kỹ thuật
Thông tin thương hiệu

> 1/3” SONY Super HAD CCD
> H.264 dual-stream encoding
> 25/30fps@D1/HD1/CIF/QVGA resolution
> D&N, 2DNR, AWB, AGC, BLC,
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Built-in 1/1 alarm in/out
> 6mm fixed lens (3.6mm,8mm,12mm optional)
> Mirco SD memory, IP65, IK10, PoE,

Model		DH-IPC-DB665P	DH-IPC-DB665N
Camera
Image Sensor		1/3” SONY Super HAD CCD
Effective Pixels		795(H)x596(V)	811(H)x508(V)
Scanning System		Interlacing
Electronic Shutter Speed		Auto/Manual 1/25~1/10000	Auto/Manual 1/30~1/10000
Min. Illumination		0.1LUX/F1.2
S/N Ratio		>50dB
Video Output		1 channel BNC(1.0Vp-p, 75Ω)
Camera Features
Day/Night		Auto(Electronic) / Color / B/W
Backlight Compensation		BLC
White Balance		Auto
Gain Control		Auto
Noise Reduction		2D
Privacy Masking		Up to 4 areas
Lens
Focal Length		6mm (3.6mm,8mm,12mm optional)
Max Aperture		F1.8
Focus Control		Fixed lens
Angle of View		H: 42° (70°/46°/35°)
Lens Type		Fixed/ Fixed Iris
Mount Type		Board-in Type
Video
Compression		H.264
Resolution		D1(704×576) /HD1(704×288)/ CIF(352×288)/QVGA(320×240)/QCIF(176×144)/QQVGA(160×120)		D1(704×480) /HD1(704×288) CIF(352×240) / QVGA(320×240) /QCIF(176×120)/QQVGA(160×120)
Frame Rate	Main Stream	D1/HD1/CIF(1 ~ 25/30fps)
	Sub Stream	D1/HD1/CIF/QVGA/QCIF/QQVGA(1 ~ 25/30fps)
Bit Rate		H.264: 32K ~ 4096Kbps
Audio
Compression		G.711a/G.711u(64kbps)/PCM(128kbps)/AMR(64kbps)
Interface		1 /1 channel In/Out
Network
Ethernet		RJ-45 (10/100Base-T)
Protocol		IPv4, HTTP, SSL, TCP/IP, UDP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter,
ONVIF		ONVIF Ver. 2.0
Max. User Access		10 users
Smart Phone		iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot		Micro SD, Max 32GB
Alarm		2/1 channel in/out
General
Power Supply		DC12V, PoE(802.3af)
Power Consumption		<5W
Working Environment		-10°C~+55°C, 10%~90%
Protection Level		IP65, IK10
Dimensions		Φ141mm×120mm
Weight		350kg
