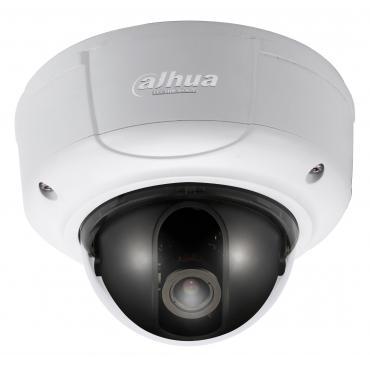

Camera Dahua HDC-HDB3200

Nhà sản xuất : Dahua

Xuất xứ : Trung Quốc

Bảo hành : 12 tháng

Tình trạng : Đang có hàng

Giá: Liên hệ để có giá tốt

0903 790 902

Thông tin sản phẩm
Thông số kỹ thuật
Thông tin thương hiệu

> 1/3″ 2Megapixel Exmor CMOS
> Standard HD-SDI high definition digital interface (SMPT274/292)
> 25/30fps@1080p, 50/60fps@720P(1280×720)
> DWDR, Day/Night(ICR), 2DNR, AWB, Auto iris, AGC, BLC
> 3.3~12mm varifocal lens
> OSD, AC24V/DC12V

Model	DH-HDC-HDB3200P	DH-HDC-HDB3200N
Camera
Image Sensor	1/3″ 2Megapixel Exmor CMOS
Effective Pixels	1920(H) x1080(V)	1920(H) x1080(V)
Electronic Shutter	Auto/Manual(1/3~1/10000s)	Auto/Manual(1/4~1/10000s)
Image Resolution	25fps@1080P(1920×1080)/720P (1280×720); 50fps@720P(1280×720)	30fps@1080P(1920×1080)/720P (1280×720); 60fps@720P(1280×720)
Min. Illumination	Color: 0.1Lux/F1. 4, B/W: 0.01Lux/F1. 4
S/N Ratio	>52dB
Video Output	1Vp-p Composite Output (75Ω/BNC)
HD-SDI Video Output	1ch HD-SDI high -definition video (SMPTE 292M standard)
Camera Features
OSD	English, Chinese(Simplified/Traditional)
Day/Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC / DWDR
White Balance	Auto/ Manual
Gain Control	Auto / Manual
Noise Reduction	2D
Picture Adjustment	Mirror / Brightness / Contrast / Sharpness / Hue / Gain
Lens
Focal Length	3.3~12mm
Max Aperture	F1.4
Focus Control	Manual
Angle of View	H: 79.3°(Wide)~29.8°(Tele)
Lens Type	Manual / Auto iris (DC)
Mount Type	CS
Auxiliary Interface
RS485	1 Port
General
Power Supply	AC24V±10% / DC12V±10%
Power Consumption	<12W
Working Environment	-10 ºC ~+60 ºC, 10%~90%
Dimensions	Φ160mm×118.5mm
Weight	1.25Kg
