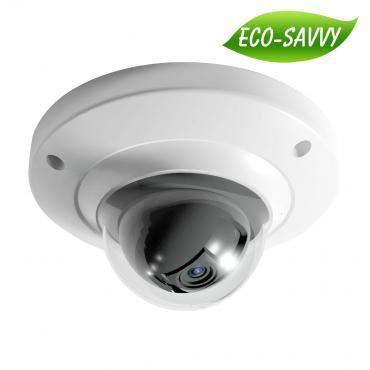

Camera Dahua IPC-HDB4300C

Nhà sản xuất : Dahua

Xuất xứ : Trung Quốc

Bảo hành : 12 tháng

Tình trạng : Đang có hàng

Giá: Liên hệ để có giá tốt

0903 790 902

Thông tin sản phẩm
Thông số kỹ thuật
Thông tin thương hiệu

> 1/3” 3Megapixel progressive scan Aptina CMOS
> H.264 & MJPEGdual-stream encoding
> Max 20fps@3M(2048×1536), 25/30fps@1080P
> Day/Night(Electronic), 3DNR, AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 3.6mm fixed lens (2.8mm,6mm optional)
> Micro SD memory, IP66, IK10, PoE

Model		DH-IPC-HDB4300CP	DH-IPC-HDB4300CN
Camera
Image Sensor		1/3” 3Megapixel Aptina CMOS
Effective Pixels		2048(H)x1536(V)
Scanning System		Progressive
Electronic Shutter Speed		Auto/Manual 1/3~1/10000	Auto/Manual 1/4~1/10000
Min. Illumination		0.01lux/F1.2(color)
S/N Ratio		>50db
Camera Features
Max. IR LEDs Length		N/A
Day/Night		Auto(Electronic)/Color/B/W
Backlight Compensation		Off/BLC/HLC/DWDR
White Balance		Auto/Manual
Gain Control		Auto/Manual
Noise Reduction		3D
Privacy Masking		Up to 4 areas
Lens
Focal Length		3.6mm (2.8mm,6mm)
Max Aperture		F1.8
Focus Control		Fixed Lens
Angle of View		H:70°(97.24°/46°)
Lens Type		Fixed lens
Mount Type		Board-in Type
Video
Compression		H.264/ MJPEG
Resolution		3.0M(2048×1536)/1080P(1920×1080) / 720P(1280×720) / D1(704×576) / CIF(352×288)		3.0M(2048´1536)/1080P(1920×1080) / 720P(1280×720) / D1(704×480) / CIF(352×240) /
Frame Rate	Main Stream	3M(1~20fps)/1080P/720P(1 ~ 25/30fps)
	Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Rate		H.264: 32K ~ 8192Kbps
Audio
Compression		N/A
Interface		N/A
Network
Ethernet		RJ-45 (10/100Base-T)
Wi-Fi		N/A
Protocol		IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF		ONVIF Profile S
Max. User Access		20 users
Smart Phone		iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot		Micro SD, Max 32GB
RS485		N/A
Alarm		N/A
PIR Sensor Range		N/A
General
Power Supply		DC12V, PoE(802.3af)
Power Consumption		<3W
Working Environment		-20°C~+60°C, Less than 95% RH
Ingress Protection		IK10
Vandal Resistance		IP66
Dimensions		Φ110mm×54mm
Weight		0.25kg
