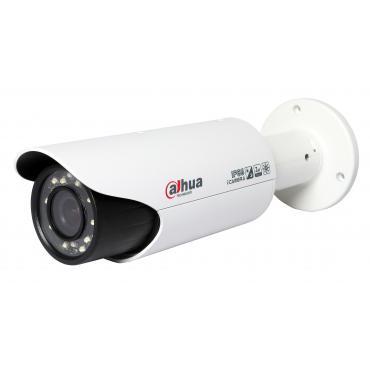

Camera Dahua IPC-HFW3101C

Nhà sản xuất : Dahua

Xuất xứ : Trung Quốc

Bảo hành : 12 tháng

Tình trạng : Đang có hàng

Giá: Liên hệ để có giá tốt

0903 790 902

Thông tin sản phẩm
Thông số kỹ thuật
Thông tin thương hiệu

> 1/3” 1.3Megapixel progressive scan Aptina CMOS
> H.264 & MJPEG dual-stream encoding
> Max 25/30fps@1.3M(1280×960)&25/30fps@720P(1280×720)
> WDR, Day/Night(ICR), 2DNR, Auto iris, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8~12mm varifocal lens
> Built-in 2/1 alarm in/out
> Max. IR LEDs length 20m
> Micro SD memory, IP66, PoE

Model		DH-IPC-HFW3101CP	DH-IPC-HFW3101CN
Camera
Image Sensor		1/3” 1.3Megapixel Aptina CMOS
Effective Pixels		1280(H)x960(V)
Scanning System		Progressive
Electronic Shutter Speed		Auto/Manual, 1/3~1/10000s	Auto/Manual, 1/4~1/10000s
Min. Illumination		0.1Lux/F1.2 (Color), 0.005Lux/F1.2(B/W);0Lux/F1.2(IR on)
S/N Ratio		>50dB
Video Output		1 channel BNC(1.0Vp-p, 75Ω)
Camera Features
Max. IR LEDs Length		20m
Day/Night		Auto(ICR)/Color/B/W
Backlight Compensation		BLC / HLC / WDR (128dB)
White Balance		Auto
Gain Control		Auto/Manual
Noise Reduction		2D
Privacy Masking		Up to 4 areas
Lens
Focal Length		2.8~12mm
Max Aperture		F1.4
Focus Control		Manual
Angle of View		H: 92°(Wide)~ 27.2°(Tele)
Lens Type		Manual / Auto Iris (DC)
Mount Type		Board-in Type
Video
Compression		H.264 / MJPEG
Resolution		1.3M(1280×960) / 720P(1280×720) / D1(704×576) / CIF(352×288)		1.3M(1280×960) / 720P(1280×720) / D1(704×480) / CIF(352×240)
Frame Rate	Main Stream	1.3M/720P(1 ~ 25/30fps)
	Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Rate		H.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 12288Kbps
Audio
Compression		G.711a / G.711u(64kbps) / PCM(128kbps)
Interface		1/1 channel In/Out
Network
Ethernet		RJ-45 (10/100Base-T)
Protocol		IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF		ONVIF Ver. 2.0
Max. User Access		10 users
Smart Phone		iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot		Micro SD, Max 32GB
Alarm		2/1 channel In/Out
General
Power Supply		DC12V(AC24 optional), PoE(802.3af)
Power Consumption		<10W
Working Environment		-10°C~+60°C, 10%~90%
Ingress Protection		IP66
Dimensions		ф104mm × 306.7mm
Weight		1.25Kg
