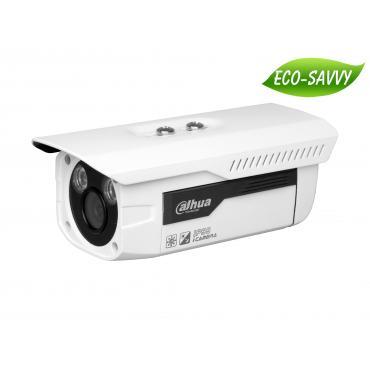

Camera Dahua IPC-HFW5200D

Nhà sản xuất : Dahua

Xuất xứ : Trung Quốc

Bảo hành : 12 tháng

Tình trạng : Đang có hàng

Giá: Liên hệ để có giá tốt

0903 790 902

Thông tin sản phẩm
Thông số kỹ thuật
Thông tin thương hiệu

• 1/3” 2Megapixel progressive scan Exmor CMOS
• H.264&MJPEG dual-stream encoding
• 25/30fps@1080P(1920×1080)
• DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• 3.6mm fixed lens (6mm,8mm optional)
• Max. IR LEDs Length 50m
• IP66, PoE

Model		DH-IPC-HFW5200DP	DH-IPC-HFW5200DN
Camera
Image Sensor		1/3” 2Megapixel progressive scan Exmor CMOS
Effective Pixels		1920(H)x1080(V)
Scanning System		Progressive
Electronic Shutter Speed		Auto/Manual, 1/3~1/10000s	Auto/Manual, 1/4~1/10000s
Min. Illumination		0. 1Lux/F1.2 (Color), 0.01Lux/F1.2(B/W);0Lux/F1.2(IR on)
S/N Ratio		More than 50dB
Video Output		1 channel BNC(1.0Vp-p,75Ω)
Camera Features
Max. IR LEDs Length		50m
Day/Night		Auto(ICR)/Color/B/W
Backlight Compensation		BLC / HLC / DWDR
White Balance		Auto/Manual
Gain Control		Auto/Manual
Noise Reduction		3D
Privacy Masking		Up to 4 areas
Lens
Focal Length		3.6mm (6mm,8mm optional)
Max Aperture		F1.6
Focus Control		Manual
Angle of View		H:70°(48.8°/37°)
Lens Type		Fixed lens
Mount Type		Board-in Type
Video
Compression		H.264/ MJPEG
Resolution		1080P(1920×1080)/720P(1280×720)/D1(704×576)/CIF(352× 288)	1080P(1920×1080)/720P(1280×720)/D1(704×480)/CIF(352× 240)
Frame Rate	Main Stream	1080P/720P(1 ~ 25/30fps)
	Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Rate		H.264: 32K ~ 8192Kbps
Audio
Compression		G.711a/ G.711u/ PCM
Interface		1/1 channel In/Out
Network
Ethernet		RJ-45 (10/100Base-T)
Wi-Fi		N/A
Protocol		IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF		ONVIF Profile S
Max. User Access		20 users
Smart Phone		iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot		Micro SD, Max 64GB
RS485		N/A
Alarm		2/1 channel In/Out
PIR Sensor Range		N/A
General
Power Supply		DC12V, PoE (802.3af)
Power Consumption		<7.6W
Working Environment		-20°C~+60°C, Less than 90% RH
Ingress Protection		IP66
Vandal Resistance		N/A
Dimensions		88mm×76mm×200.2mm
Weight		0.92kg
